TreeTugger – Rigging made easy!

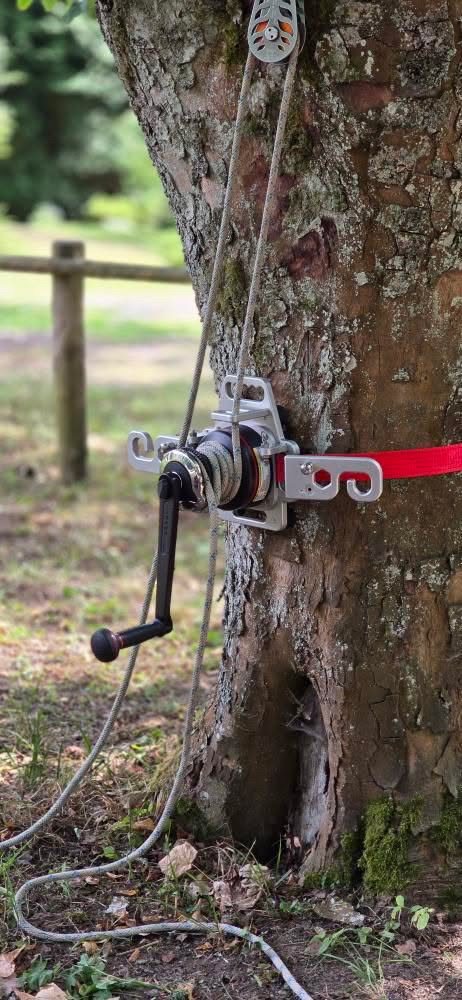

The tree care rigging system with an unbeatable payload-to-weight ratio – only 8 kg light!

For rope installation, the one-handed rope guides simply fold away toward the tree.
The locking hinges prevent unwanted folding back. This allows the drum to be comfortably loaded with rope.
When lowering, the rope guides are folded back and the rope is securely guided onto the drum from any position through the guides.
Removable rubber buffers protect the tree.

Technical data:

Maximum payload: 500kg with safety factor 7:1
Harken Industrial High Capacity Drum Rigging Winch IN40.2 STA
Counterclockwise rotation ratio: Distance 2:1, Force 13.5:1
Clockwise rotation ratio: Distance 6:1, Force 40:1
For rope Ø 8-12 mm
Anodized aluminum frame made of high-strength rolled plate | Cold-formed threads | Stainless steel fastenings
Single-handed, foldable rope guides with practical latching hinges (latching every 30°, holding torque 2.5Nm, service life 30,000+ switching cycles)
CE compliant
Weight 8 kg
